Q1
mcq
1 mark
_______ is a large printed Circuit Board having many chips, ports, controllers and other electronic components mounted on it.
- A. Integrated Circuit
- B. Mother Board
- C. Chipset
- D. North Bridge.
Correct Answer: B —
Solution
The Motherboard is the main circuit board in a computer that holds and connects the CPU, memory, ports, and other essential electronic components.
Q2
mcq
1 mark
Complementary law states that
- A. $X \cdot X = X$
- B. $X \cdot 0 = 0$
- C. $X + 1 = 1$
- D. $X \cdot \bar{X} = 0$
Correct Answer: D —
Solution
The complement law in Boolean algebra states that $X \cdot \bar{X} = 0$ and $X + \bar{X} = 1$. The other options represent the idempotent law ($X \cdot X = X$), null law ($X \cdot 0 = 0$), and annihilation/identity law ($X + 1 = 1$).
Q3
mcq
1 mark

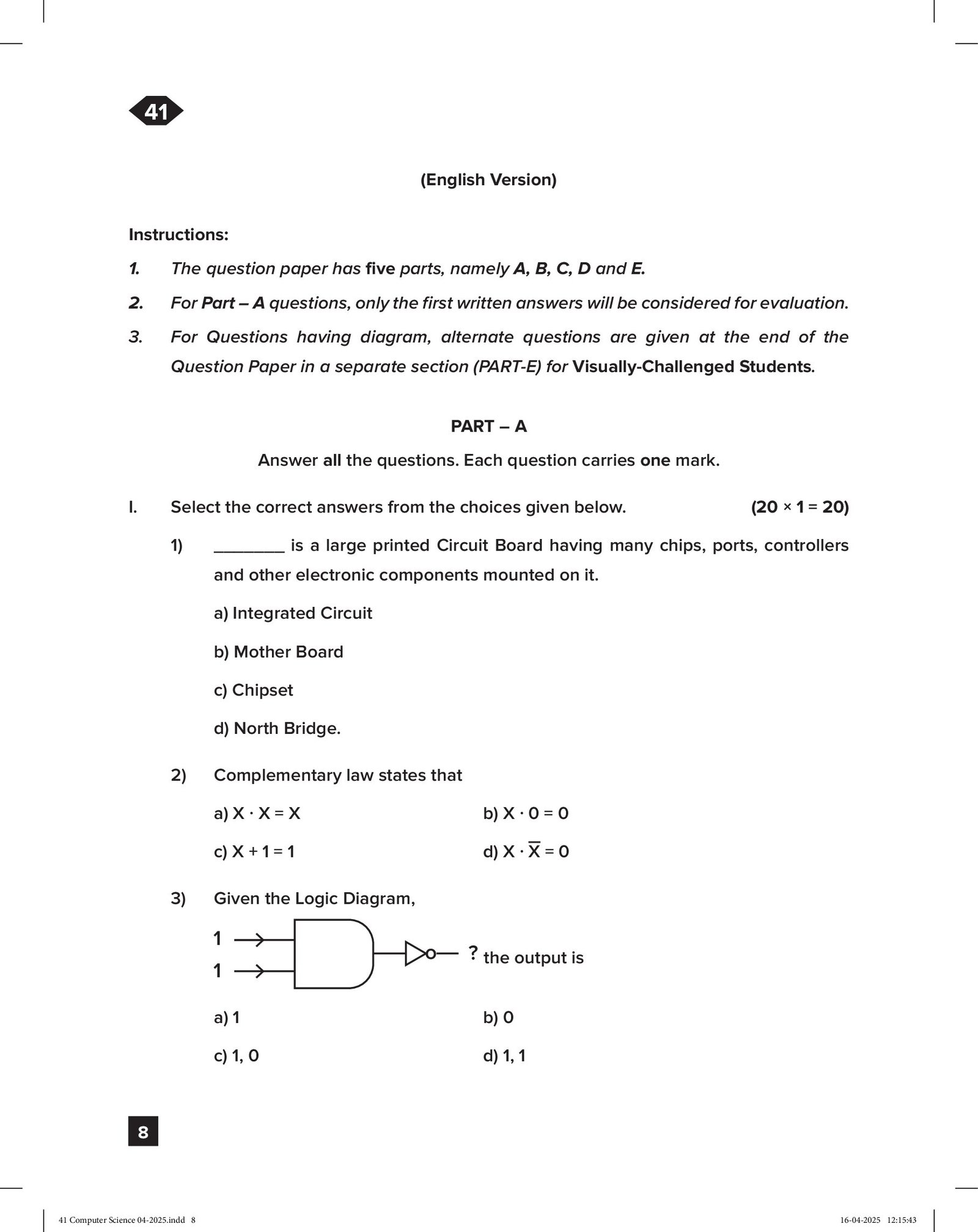

Given the Logic Diagram, the output is
- A. 1
- C. 1, 0
- D. 1, 1
Correct Answer: B —
Solution
The diagram shows an AND gate followed by a NOT gate (a NAND gate). The inputs are 1 and 1. The output of the AND gate is $1 \cdot 1 = 1$. The NOT gate inverts this, resulting in an output of 0.
Q4
mcq
1 mark
Assertion (A) : A stack is a LIFO data structure. Reason (R): An ordered collection of items where insertion and deletion take place at same end.
- A. Both (A) and (R) are false
- B. (A) is true, and (R) is false
- C. Both (A) and (R) are true
- D. (A) is false and (R) is true.
Correct Answer: C —
Solution
A stack is indeed a LIFO (Last-In-First-Out) data structure, and by definition, it is an ordered collection where all insertion and deletion operations happen at the same end, called the 'top'.
Q5
mcq
1 mark
Examine the following C++ program segment and identify the error.
Class result
{
private:int a;
}
void main ( )
{
result x;
}
- A. Error due to incorrect object declaration.
- B. Error due to semicolon missing after class definition.
- C. Error due to missing public access specifier.
- D. Error due to invalid initialization of object.
Correct Answer: B —
Solution
In C++, a class definition must end with a semicolon after the closing brace. The provided code segment lacks this semicolon after the 'class result' block, which causes a syntax error.
Q6
mcq
1 mark
Which of the following statements are correct with respect to function overloading?
I. Functions names are same.
II. Number of arguments are same.
III. Number of arguments are different.
IV. Data types of arguments are different.
- A. I, III and IV are correct.
- B. I, II and III are correct.
- C. I, II and IV are correct.
- D. II and IV are correct.
Solution hidden
Log in to view solution →
Q7
mcq
1 mark
The symbol used with destructor is
- A. #
- B. ::
- C. ~
- D. *
Solution hidden
Log in to view solution →
Q8
mcq
1 mark
If a class is derived from more than one base class, then it is called as
- A. Multiple inheritance
- B. Single inheritance
- C. Hierarchical inheritance
- D. Multilevel inheritance.
Solution hidden
Log in to view solution →
Q9
mcq
1 mark
Given int *ptr, X = 50; which is the correct way to assign address of X variable to the pointer?
- A. ptr = X;
- B. ptr = *X;
- C. ptr = &X;
- D. X = ptr;
Solution hidden
Log in to view solution →
Q10
mcq
1 mark
Collection of data elements organised in terms of rows and columns is called as ________.
- A. Attribute
- B. Table
- C. Domain
- D. Field
Solution hidden
Log in to view solution →
Q11
mcq
1 mark
Which one of the following command belongs to DDL in SQL?
- A. Create
- B. Insert
- C. Grant
- D. Delete
Solution hidden
Log in to view solution →
Q12
mcq
1 mark
TCP .
- A. Transfer Control Program
- B. Transmission Control Protocol
- C. Transmission Control Program
- D. Transfer Control Protocol
Solution hidden
Log in to view solution →
Q12
mcq
Correct expansion form of TCP is
- A. Transfer Control Program
- B. Transmission Control Protocol
- C. Transmission Control Program
- D. Transfer Control Protocol
Solution hidden
Log in to view solution →
Q13
mcq
An example for Half Duplex Communication mode is
- A. Walkie talkie
- B. Telephone
- C. Television
- D. Mobile
Solution hidden
Log in to view solution →
Q14
mcq
The trade of goods and services with the help of Telecommunication and Computer is
- A. Telnet
- B. Web Browser
- C. Web Server
- D. e-Commerce
Solution hidden
Log in to view solution →
Q15
mcq
Which of the following refers to the Web Content that changes each time, when it is viewed?
- A. HTML
- B. DHTML
- C. XML
- D. FTP
Solution hidden
Log in to view solution →
Q16
short answer
The collection of facts, figures, statistics is called _______.
Solution hidden
Log in to view solution →
Q18
short answer
________ Model organises the data in table form.
Solution hidden
Log in to view solution →
Q19
short answer
The symbol used to represent attribute in ER Diagram is _______.
Solution hidden
Log in to view solution →
Q20
short answer
_________ is concerned with the analysis and picking out relevant information.
Solution hidden
Log in to view solution →
Q21
short answer
2 marks
Prove algebraically that $X + XY = X$.
Solution hidden
Log in to view solution →
Q23
short answer
2 marks
What is constructor? Give an example.
Solution hidden
Log in to view solution →
Q24
short answer
2 marks
Differentiate between text file and binary file.
Solution hidden
Log in to view solution →
Q25
short answer
2 marks
List any two applications of database.
Solution hidden
Log in to view solution →
Q26
short answer
2 marks
Describe Relational (Comparison) operator in SQL.
Solution hidden
Log in to view solution →
Q27
short answer
2 marks
Write syntax and example for SQL DELETE command.
Solution hidden
Log in to view solution →
Q28
short answer
3 marks
Explain the characteristics of a mother board.
Solution hidden
Log in to view solution →
Q29
short answer
3 marks
What is primitive data structure? Give any two examples.
Solution hidden
Log in to view solution →
Q30
short answer
3 marks
Describe array of pointers with an example.
Solution hidden
Log in to view solution →
Q31
short answer
3 marks
Explain any three file opening modes in data file handling.
Solution hidden
Log in to view solution →
Q32
short answer
3 marks
Differentiate between manual and Electronic Data Processing.
Solution hidden
Log in to view solution →
Q33
short answer
3 marks
Expand the following:
a) WWW
b) URL
c) EFT
Solution hidden
Log in to view solution →
Q34
short answer
3 marks
Write HTML tags
a) To insert image in a web page.
b) To add background colour to web page.
c) To bold text on a web page.
Solution hidden
Log in to view solution →
Q35
long answer
5 marks
Write an algorithm for binary search.
Solution hidden
Log in to view solution →
Q36
long answer
5 marks
What are the applications of QUEUE?
Solution hidden
Log in to view solution →
Q38
long answer
5 marks
What is inline function? Explain with suitable example.
Solution hidden
Log in to view solution →
Q39
long answer
5 marks
Illustrate how to invoke parameterized constructor implicitly.
Solution hidden
Log in to view solution →
Q40
long answer
5 marks
What is inheritance? Explain single inheritance and hierarchical inheritance.
Solution hidden
Log in to view solution →
Q41
long answer
5 marks
What is Topology? Explain any two topologies.
Solution hidden
Log in to view solution →
Q42
long answer
5 marks
Given the Boolean function F (A, B, C, D) = Σ (0, 1, 4, 5, 10, 11, 14). Reduce it using k-map.
Solution hidden
Log in to view solution →
Q43
long answer
5 marks
Define class SI with the following members and conditions.
i) Data members: principle, rate, time
ii) Member functions: getdata ( ) and output ( )
iii) Define member functions outside the class to input and output principle, rate, time.
Solution hidden
Log in to view solution →
Q44
long answer
5 marks
Write the SQL Query for the following question based on given employee table.
Table Name : Employee
I) Develop the table with above fields.
II) Display the structure of the table.
III) Find the total number of employees.
IV) Find the maximum salary.
V) Display all employee record with age >30.
Solution hidden
Log in to view solution →
Q44
long answer
5 marks

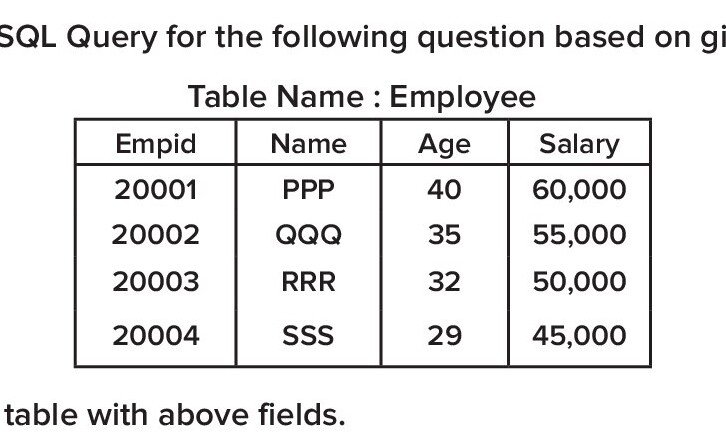

Write the SQL Query for the following question based on given employee table. Table Name : Employee
Empid Name Age Salary
20001 PPP 40 60,000
20002 QQQ 35 55,000
20003 RRR 32 50,000
20004 SSS 29 45,000
I) Develop the table with above fields.
II) Display the structure of the table.
III) Find the total number of employees.
IV) Find the maximum salary.
V) Display all employee record with age >30.
Solution hidden
Log in to view solution →
Q47
mcq
What is the output of the two input AND Gate for the inputs X = 1 and Y = 1?
- A. 1
- C. 1, 1
- D. 0, 0
Solution hidden
Log in to view solution →
